Why Molds Need Sprues and Vents

بواسطة : عبدالله صلوح بتاريخ : 6:07 م

Mold creating and casting area unit comparatively easy processes. build a mould of the model you would like to breed so pour the casting material into the mould. watch for it to cure properly before extracting, and viola your design is ready!

However, sure technicalities additionally creep into the image. for example, you've got to decide on the proper mould creating and casting product that area unit appropriate for the task. At times, unharness agent, fillers and alternative things also are needed.

Another vital purpose is that because the casting material poured through the tropical sprue, displaces the air within the mould, some air will simply get unfree within and therefore the casting material are unable to utterly fill the mould. These air pockets cause hollow areas which may end in associate degree unpleasant and misshapen forged.

So, however can you get obviate these air traps and pockets once casting synthetic rubber or polymer resin?

The answer is easy - build vent holes! These area unit holes that area unit created within the sides of the mould sometimes on the high spots of the mould wherever air tends to initial migrate. this permits air to flee from the mould once casting material is being poured within. currently the casting material will reach all the corners and spots within the mould sans any gaps.

The location and variety of vents is very important. The holes area unit ideally placed on the highest surface of the mould as air tends to rise to the highest of the mould. it is best to make vents right along the highest perimeter of the mould whereas guaranteeing that you just cowl all the high spots. Keep them an in. about apart. If you're creating sprues on the edges of the mould, make sure that they taper up alternatively the casting material can simply effuse of the mold!

How to?

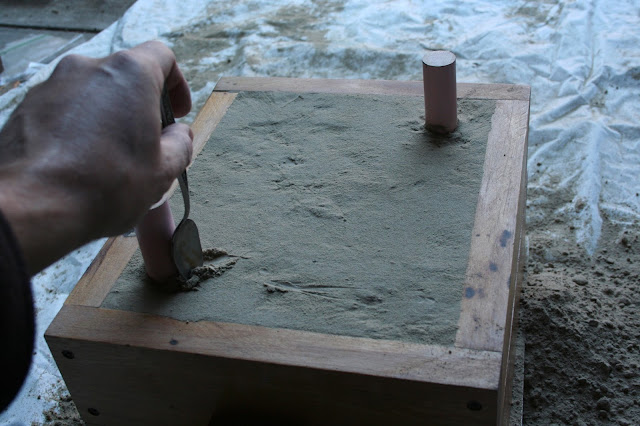

Vents area unit created by drilling holes within the surface of the finished mould. instead, you'll even insert hollow tubes throughout the mould creating method itself. once removed later, the tunnel can function a tropical sprue.

The same vent holes will serve a twin purpose. excluding operating as a vent for air to exit the mould, the opening may also be used as associate degree alternate tropical sprue, to feature liquid casting material into the mould. suppose injection molding!

In case identical vent is employed as a tropical sprue hole and vent, it ought to be placed at the very best purpose of the mould and be massive enough to permit the air to flee even whereas the fabric is being poured.

Carefully pour the synthetic rubber or polymer rosin into the tropical sprue hole and continue until it overflows from all the vents. This shows that the fabric has displaced all the air within. the fabric can cure within the vents too and may be cut be interrupt when demolding.

Please not that solely closed molds need vents. If the mould is open at the highest (will become the flat bottom of the cast), the air will escape simply and therefore the material can fill out while not requiring any vents.
